Exhaust System Insulator Removal/Installation

  1. Remove the exhaust system insulator in the order shown in the figure.
  2. Install in the reverse order of removal.

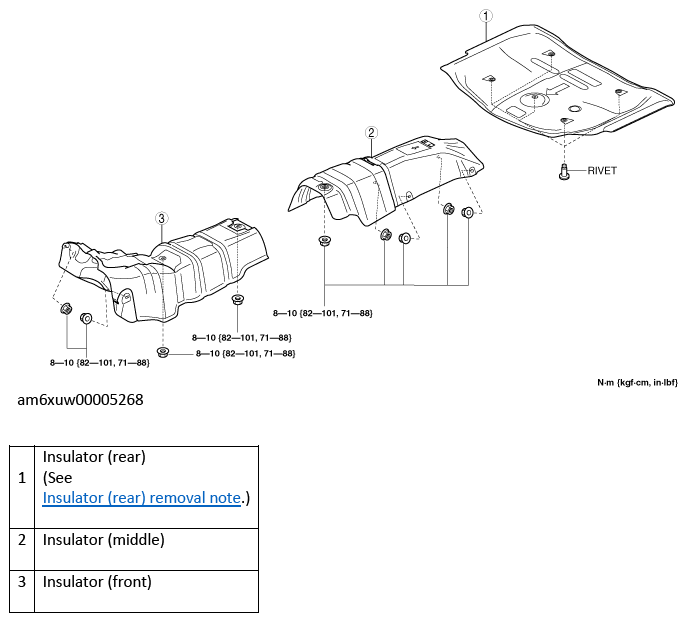

Fig 1: Locating Different Insulators Of Exhaust System
G11546880Courtesy of MAZDA MOTORS CORP.
