Dashboard Disassembly/Assembly

  1. Disassemble in the order indicated in the table.

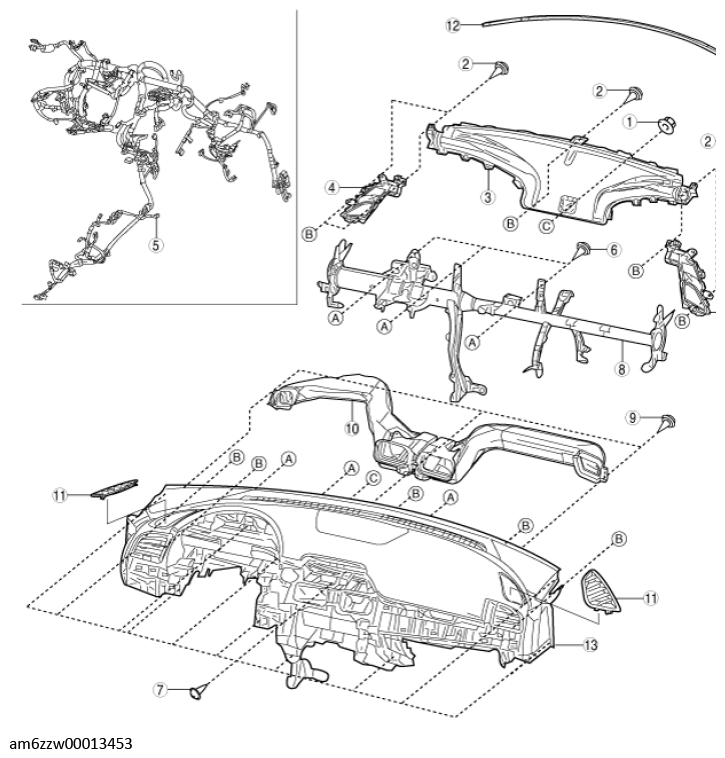

    Fig 1: Exploded View Of Dashboard
    G11544500Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Nut
    2 Screw
    3 Center defroster
    4 Side defroster
    5 Wiring harness
    6 Screw
    7 Screw
    8 Dashboard member
    9 Screw
    10 Duct
    11 Demister grille
    12 Seal tape
    13 Dashboard
  2. Assemble in the reverse order of disassembly.
