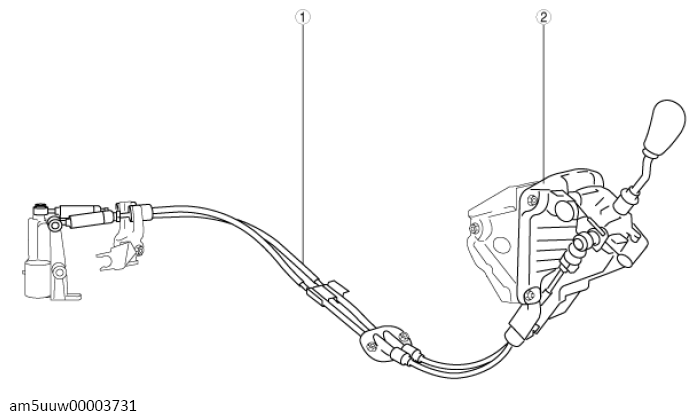

Manual Transaxle Shift Mechanism Location Index

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Control cable (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
2	Shift lever component (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
