Quick Diagnosis Chart

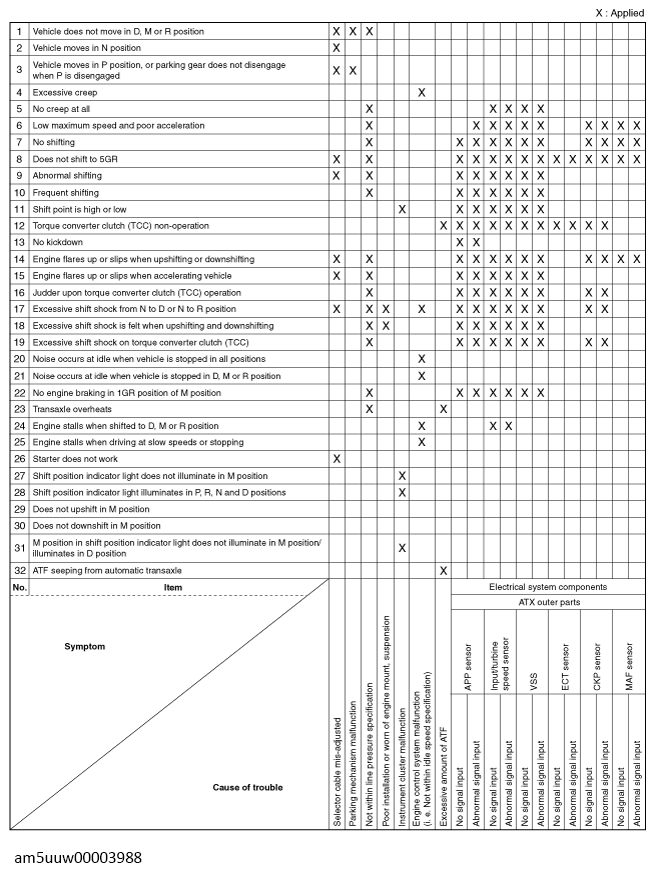

G13727294Courtesy of MAZDA MOTORS CORP.

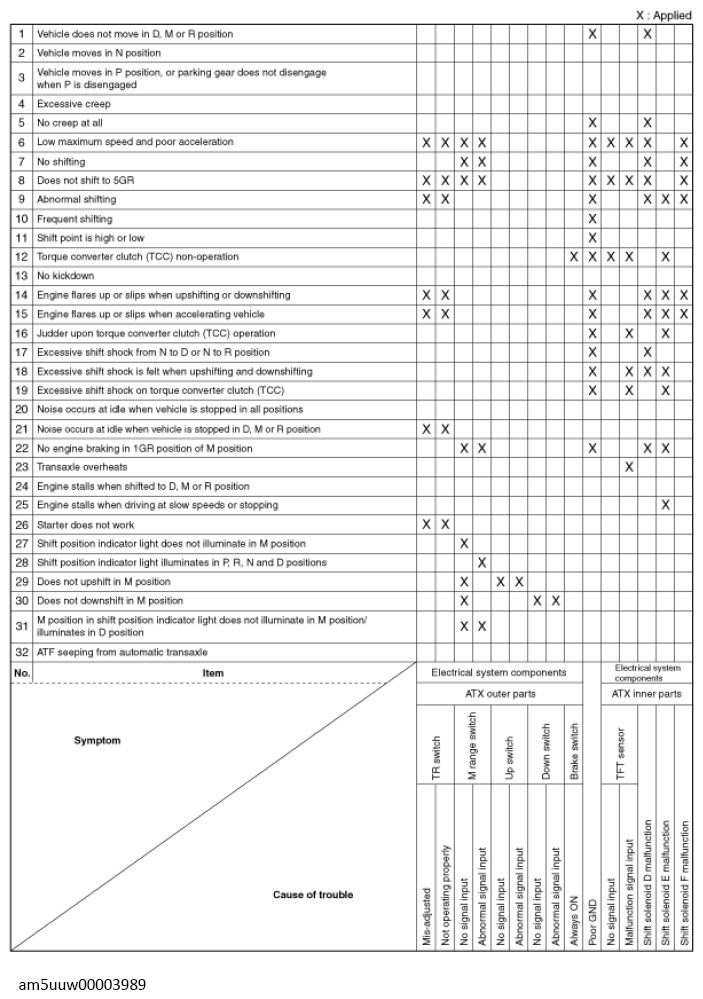

G13727295Courtesy of MAZDA MOTORS CORP.

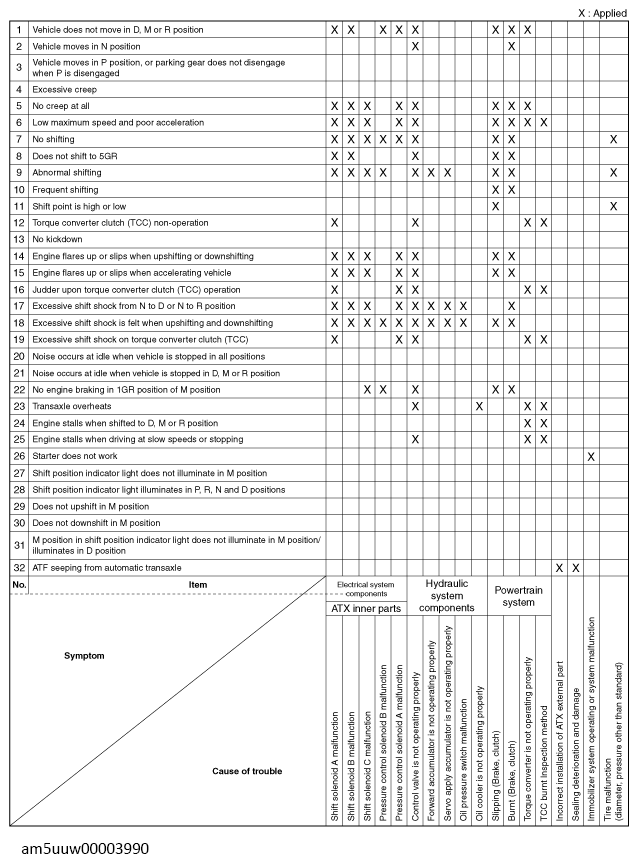

G13727296Courtesy of MAZDA MOTORS CORP.

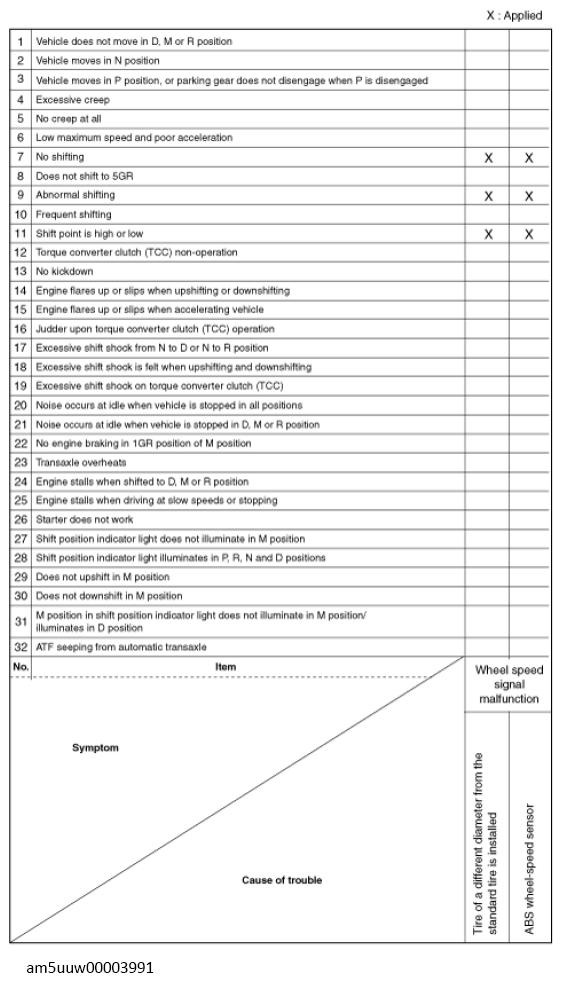

G13727297Courtesy of MAZDA MOTORS CORP.
