Radiator Mount Installation Note

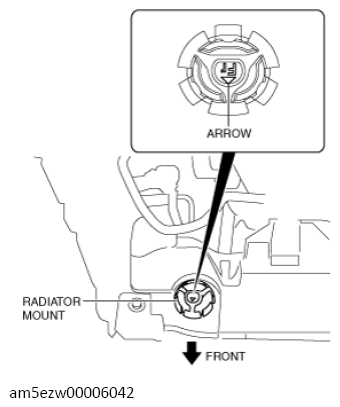

  1. Install the radiator mount so that the arrow on it is pointed toward the front of the vehicle.
G13726693Courtesy of MAZDA MOTORS CORP.
