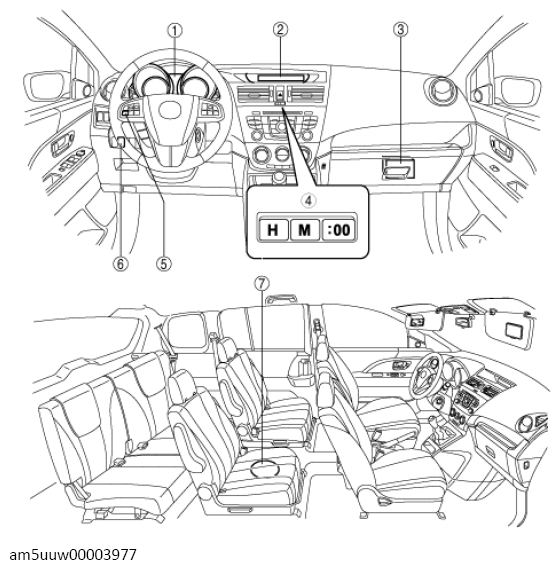

Instrumentation/Driver Info. Location Index: Interior

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .) (See INSTRUMENT CLUSTER CONFIGURATION .) (See INSTRUMENTATION/DRIVER INFO. PERSONALIZATION FEATURES SETTING PROCEDURE .)
2	Information display (See INFORMATION DISPLAY REMOVAL/INSTALLATION .) (See INFORMATION DISPLAY INSPECTION .) (See INFORMATION DISPLAY INPUT/OUTPUT CHECK MODE .)
3	Parking sensor control module (with parking sensor system) (See PARKING SENSOR CONTROL MODULE REMOVAL/INSTALLATION .) (See PARKING SENSOR CONTROL MODULE INSPECTION .) (See BEEP SOUND ADJUSTMENT .)
4	Clock switch (See CLOCK SWITCH REMOVAL/INSTALLATION .) (See CLOCK SWITCH INSPECTION .)
5	INFO switch (See INFO SWITCH REMOVAL/INSTALLATION .) (See INFO SWITCH INSPECTION .)
6	Parking sensor switch/indicator (with parking sensor system) (See PARKING SENSOR SWITCH/INDICATOR REMOVAL/INSTALLATION .) (See PARKING SENSOR SWITCH/INDICATOR INSPECTION .)
7	Fuel gauge sender unit (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION .) (See FUEL GAUGE SENDER UNIT INSPECTION .)
