Center Console Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the center console box. (See CENTER CONSOLE BOX REMOVAL/INSTALLATION .)
  3. Remove the console panel. (See CONSOLE PANEL REMOVAL/INSTALLATION .)

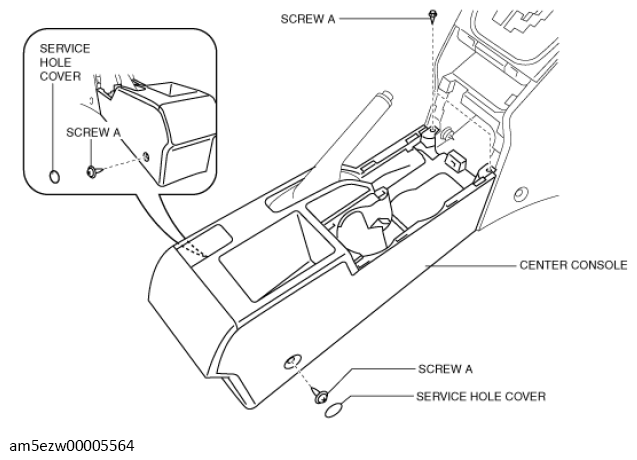

  4. Remove the service hole cover, then remove the screws A.
    G13728338Courtesy of MAZDA MOTORS CORP.

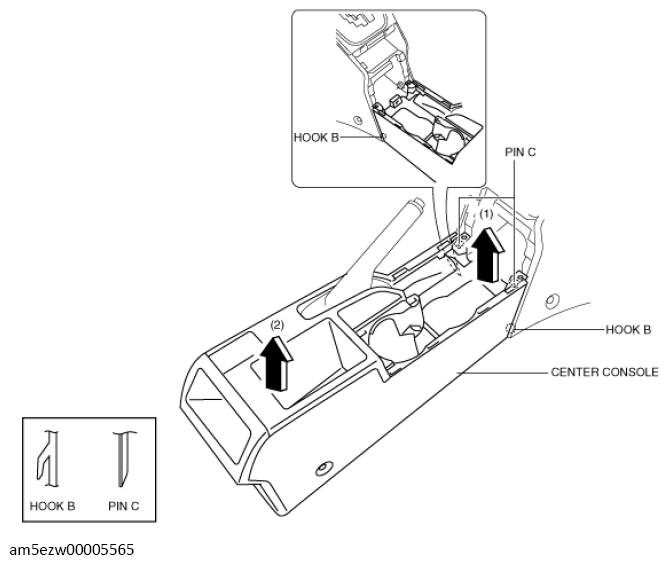

  5. Pull the center console in the direction of the arrow (1), (2) while remove the hooks B and pins C.
    G13728339Courtesy of MAZDA MOTORS CORP.
  6. Disconnect the rear fan switch connector. (See REAR FAN SWITCH REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .)
  7. Remove the center console.
  8. Install in the reverse order of removal.
