Front Door Speaker Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION .)
  3. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)

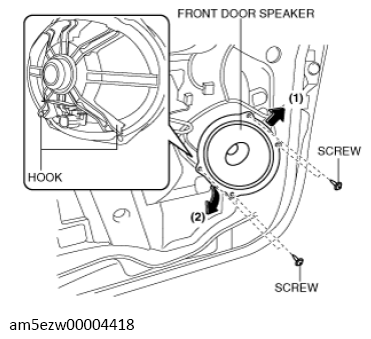

  4. Remove the screws.
    G13728625Courtesy of MAZDA MOTORS CORP.
  5. Move the front door speaker in the direction of arrow (1) shown in the figure, and pull it out in the direction of arrow (2) shown in the figure while releasing the hooks.

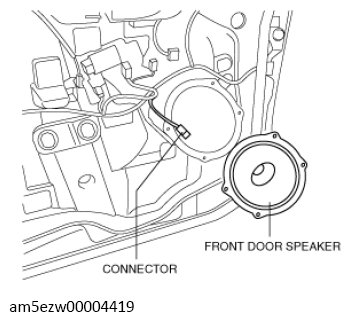

  6. Disconnect the connector.
    G13728626Courtesy of MAZDA MOTORS CORP.
  7. Remove the front door speaker.
  8. Install in the reverse order of removal. (See FRONT DOOR SPEAKER INSTALLATION NOTE .)
