Combination Switch Disassembly/Assembly

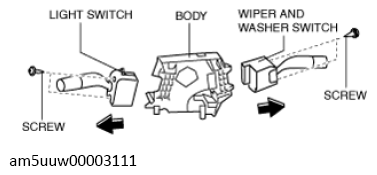

  1. Remove the screws shown in the figures, then pull the light switch, and the wiper and washer switch in the direction of the arrow respectively to remove them.
    G13728436Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
