High Pressure Fuel Pump Installation Note

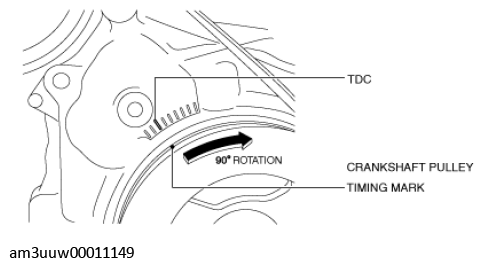

- Rotate the crankshaft approx. 90 degrees from TDC of cylinder N0.1.
- Insert the high pressure fuel pump into the rear housing.
- Press in the high pressure fuel pump until the O-ring cannot be seen.
- Temporarily tighten the high pressure fuel pump installation bolt on one side until its head contacts the high pressure fuel pump.
- Tighten the high pressure fuel pump installation bolt which is not tightened in step 4.
High pressure fuel pump installation bolt tightening torque
19-25 N-m {2.0-2.5 kgf-m, 15-18 ft-lbf}
- Tighten the high pressure fuel pump installation bolt which was tightened in step 4.
High pressure fuel pump installation bolt tightening torque
19-25 N-m {2.0-2.5 kgf-m, 15-18 ft-lbf}
