Automatic Transmission Location Index

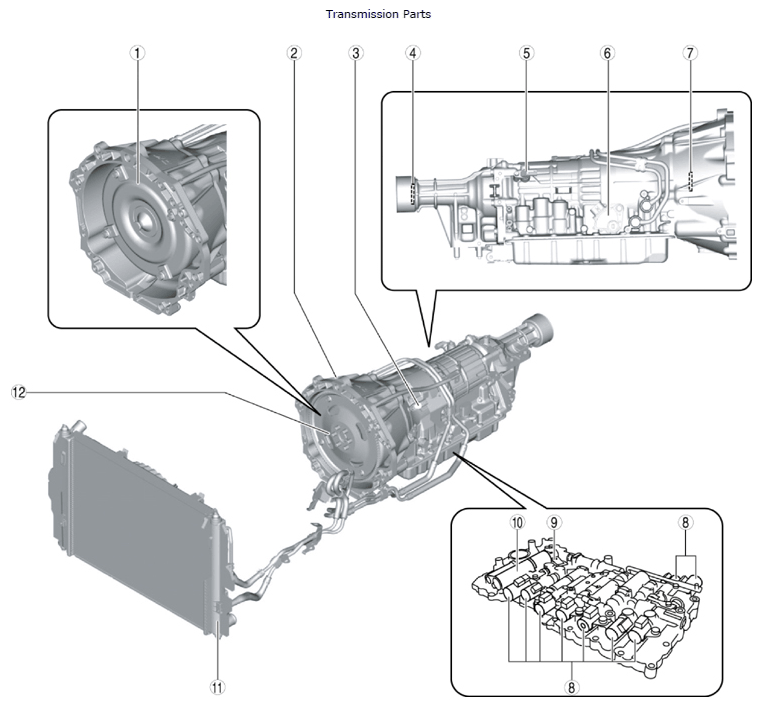

Fig 1: Automatic Transmission Parts Location (SJ6A-EL)

G10952689

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Torque converter (See TORQUE CONVERTER REMOVAL/INSTALLATION .)
2	Automatic transmission (See MECHANICAL SYSTEM TEST .) (See ROAD TEST .) (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION .) (See AUTOMATIC TRANSMISSION FLUID (ATF) REPLACEMENT .) (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT .) (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION .) (See POWER PLANT FRAME REMOVAL/INSTALLATION .)
3	Turbine sensor (See TURBINE SENSOR INSPECTION .) (See TURBINE SENSOR REMOVAL/INSTALLATION .)
4	Oil seal (extension housing) (See OIL SEAL (EXTENSION HOUSING) REPLACEMENT .)
5	Vehicle speed sensor (VSS) (See VEHICLE SPEED SENSOR (VSS) INSPECTION .) (See VEHICLE SPEED SENSOR (VSS) REMOVAL/INSTALLATION .)
6	Transmission range (TR) switch (See TRANSMISSION RANGE (TR) SWITCH INSPECTION .) (See TRANSMISSION RANGE (TR) SWITCH REMOVAL/INSTALLATION .) (See TRANSMISSION RANGE (TR) SWITCH ADJUSTMENT .)
7	Oil seal (oil pump) (See OIL SEAL (OIL PUMP) REPLACEMENT .)
8	Solenoid valve (See SOLENOID VALVE INSPECTION .)
9	Transmission fluid temperature (TFT) sensor (See TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR INSPECTION .) (See TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR REMOVAL/INSTALLATION .)
10	Control valve body (See CONTROL VALVE BODY REMOVAL .) (See CONTROL VALVE BODY INSTALLATION .)
11	Oil cooler (See OIL COOLER FLUSHING .) (See OIL COOLER REMOVAL/INSTALLATION .)
12	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION .)

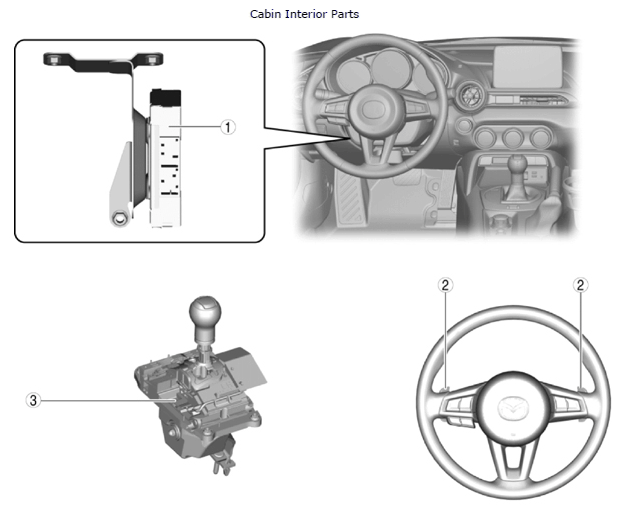

Fig 2: Cabin Interior Parts Location (SJ6A-EL)

G10952690

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	TCM (See TCM INSPECTION .) (See TCM REMOVAL/INSTALLATION .) (See INITIAL LEARNING PROCEDURE .)
2	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION .) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION .)
3	Selector lever (See M POSITION SWITCH INSPECTION .) (See M POSITION SWITCH REMOVAL/INSTALLATION .) (See UP SWITCH INSPECTION .) (See UP SWITCH REMOVAL/INSTALLATION .) (See DOWN SWITCH INSPECTION .) (See DOWN SWITCH REMOVAL/INSTALLATION .)
