Fuel Pump Unit Disassembly/Assembly
- Disassemble in the order indicated in the table.
- Assemble in the reverse order of disassembly.

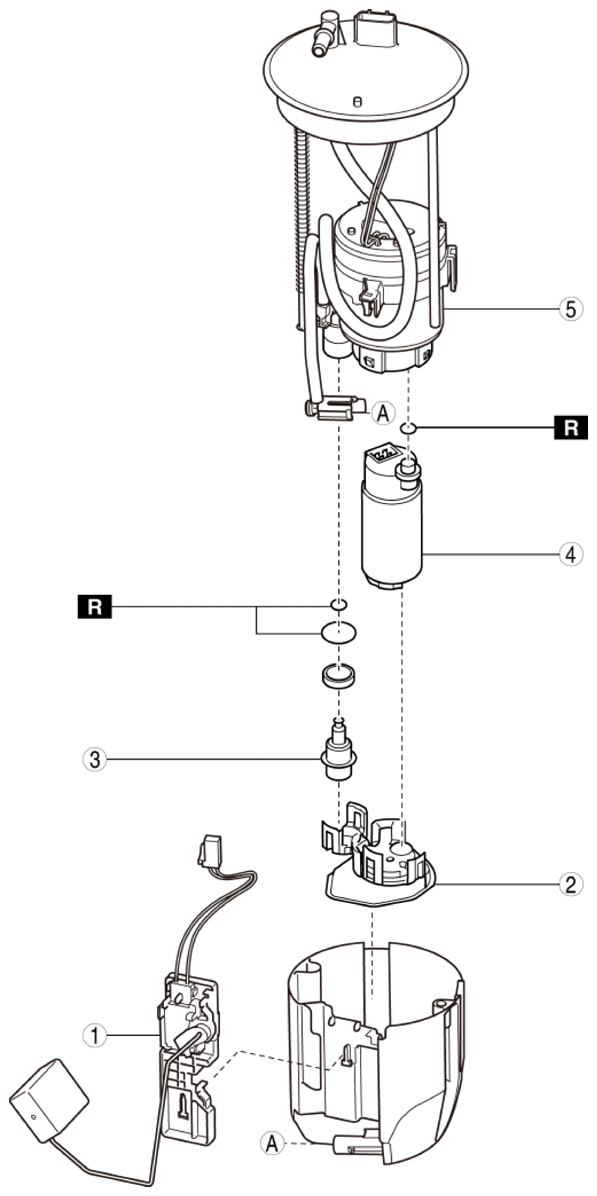

Courtesy of MAZDA MOTORS CORP. COMPONENT DESCRIPTION
| 1 |
Fuel gauge sender unit |
| 2 |
Fuel filter (low-pressure) |
| 3 |
Pressure regulator |
| 4 |
Fuel pump |
| 5 |
Fuel filter (high-pressure) |
