KS Installation Note
- Verify that there is no foreign matter caught between the KS unit and cylinder block.

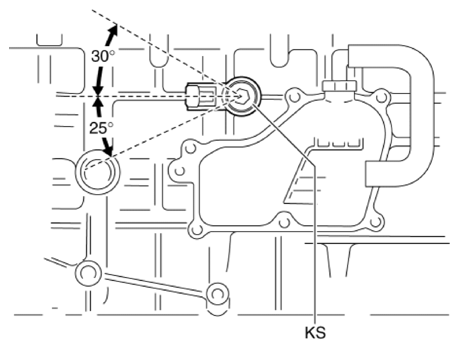

- The direction of the KS connector is within the angle range shown in the figure.
Courtesy of MAZDA MOTORS CORP.
