Action for Non-repeatable Malfunction

If the malfunction does not recur, verify the malfunction cause by performing the following actions:
- Verify that a DTC has been recorded in the memory. (Refer to DTC INSPECTION [AUTO LEVELING CONTROL MODULE] .)
- Based on the repair order form, attempt to drive the vehicle or perform tests to replicate the malfunction, record the data at that time, and detect the malfunction cause.
- Shake the wiring harness or connector of the electrical component which is suspected to be the cause of the malfunction, and inspect for malfunction or occurrence of any DTCs.

  Fig 1: Checking Electrical Component Connector
  Courtesy of MAZDA
- Inspect the female terminals on the connector of the electric component which is suspected to be the cause of the malfunction for poor connection.

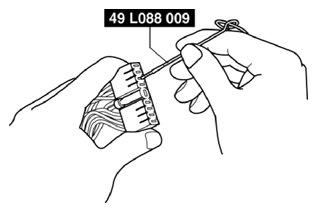

  Fig 2: Inspecting Electrical Component Female Terminals
  Courtesy of MAZDA
