Troubleshooting Procedure

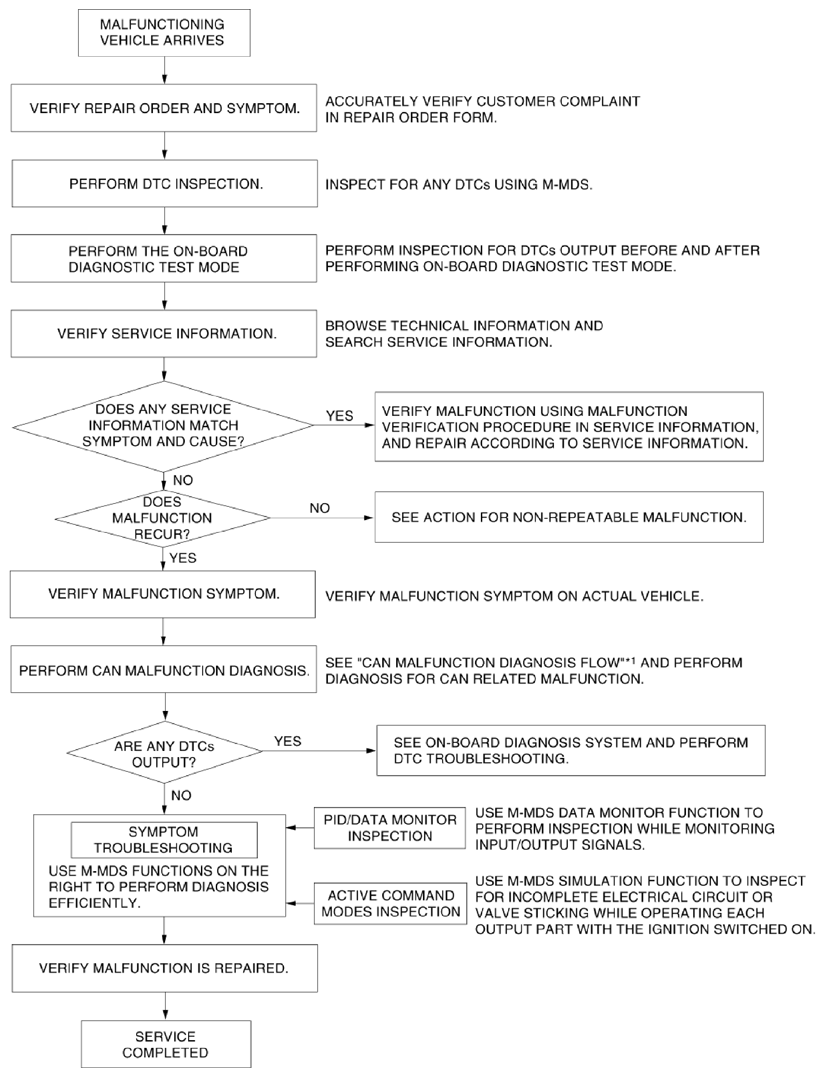

Fig 1: Automatic Transaxle Control System Troubleshooting Chart (GW6A-EL And GW6AX-EL)
G10947836Courtesy of MAZDA
