Symptom Troubleshooting - Automatic Transaxle
>>
Automatic Transaxle Control System Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Automatic Transaxle Control System Wiring Diagram

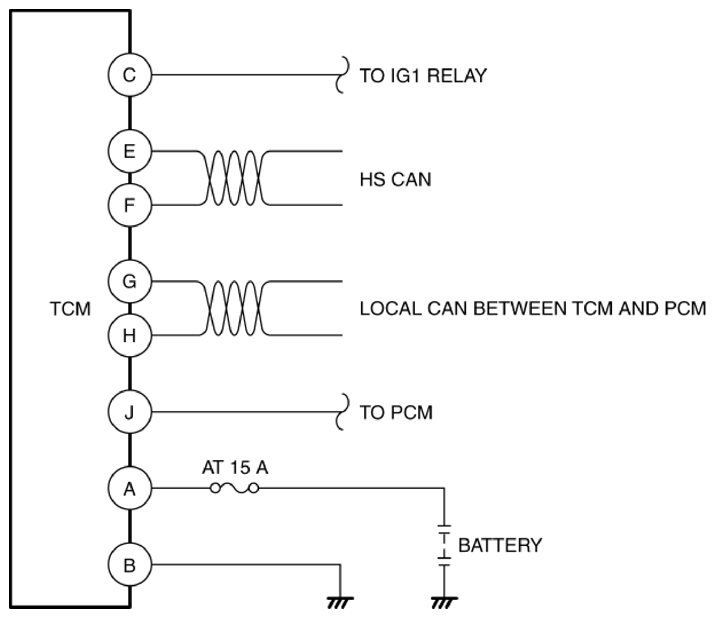

Fig 1: Automatic Transaxle Control System Wiring Diagram (GW6A-EL And GW6AX-EL)
Courtesy of MAZDA
