Rear Trailing Link Installation Note

  1. Install the rear trailing link installation bolts using a jack.

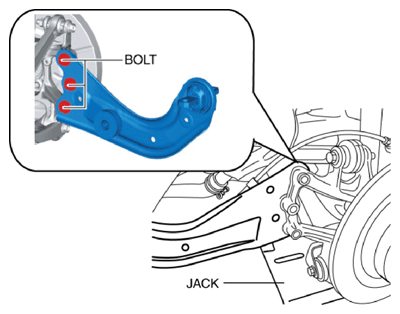

    Fig 1: Installing Rear Trailing Link Installation Bolts
    G10947333Courtesy of MAZDA MOTORS CORP.
  2. Install the rear trailing link installation nut.
