Instrument Cluster Installation Note

  1. Install the screws in the order of (1), (2), and (3).

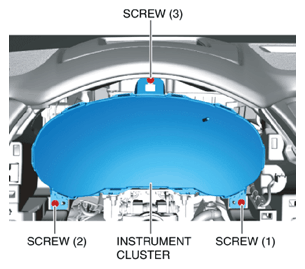

    Fig 1: Identifying Instrument Cluster And Screws
    G10950820Courtesy of MAZDA MOTORS CORP.
