Mirror Glass Adjustment

  1. Disconnect the negative battery terminal. Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front door trim. Refer to FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Apply battery positive voltage and connect the ground to the power outer mirror terminals and inspect the power outer mirror operation.

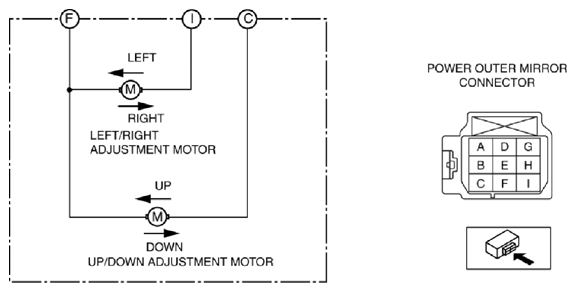

    Fig 1: Identifying Power Outer Mirror Connector Terminals
    G10949584Courtesy of MAZDA MOTORS CORP.
    • If the power outer mirror does not operate as indicated in the table, replace the power outer mirror.
    Mirror operation direction Battery positive voltage connect terminal Ground connect terminal
    Up C F
    Down F C
    Left I F
    Right F I
