On-Board Diagnostic - Position Memory Control Module
>>
On-Board Diagnostic Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
On-Board Diagnostic Wiring Diagram

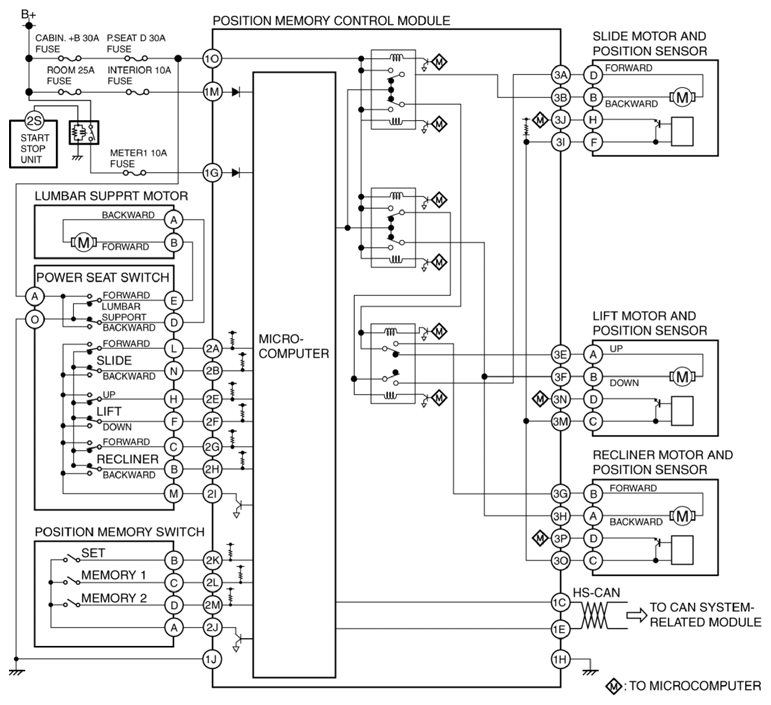

Fig 1: On-Board Diagnostic Wiring Diagram (Position Memory Control Module)
Courtesy of MAZDA
