Rectifier (Using An Analog Circuit Tester)
Inspect for continuity of the diodes using an analog circuit tester.

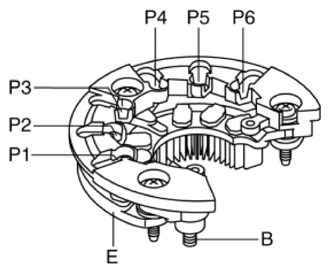

Fig 1: Inspecting For Continuity Of Diodes Using Analog Circuit Tester
Courtesy of MAZDA MOTORS CORP.
If not as specified, replace the rectifier.
RECTIFIER SPECIFICATION
Negative
Positive
Continuity
E
P1, P2, P3, P4, P5, P6
Yes
B
No
P1, P2, P3, P4, P5, P6
E
No
B
Yes
