On-Board Diagnostic Wiring Diagram [Advanced Keyless Entry System]

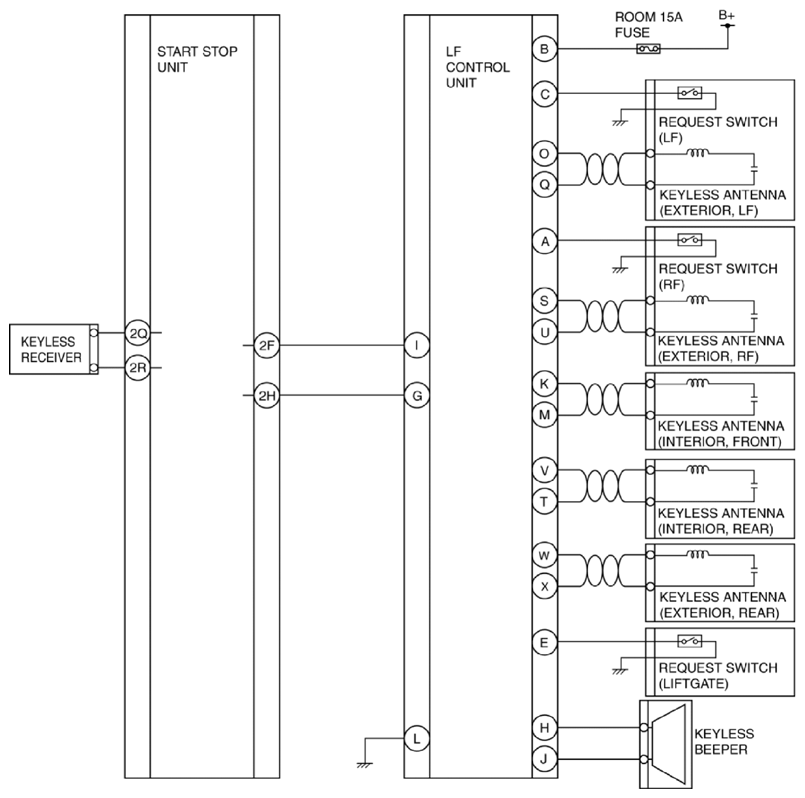

Fig 1: Advanced Keyless Entry System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
