System Wiring Diagram

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

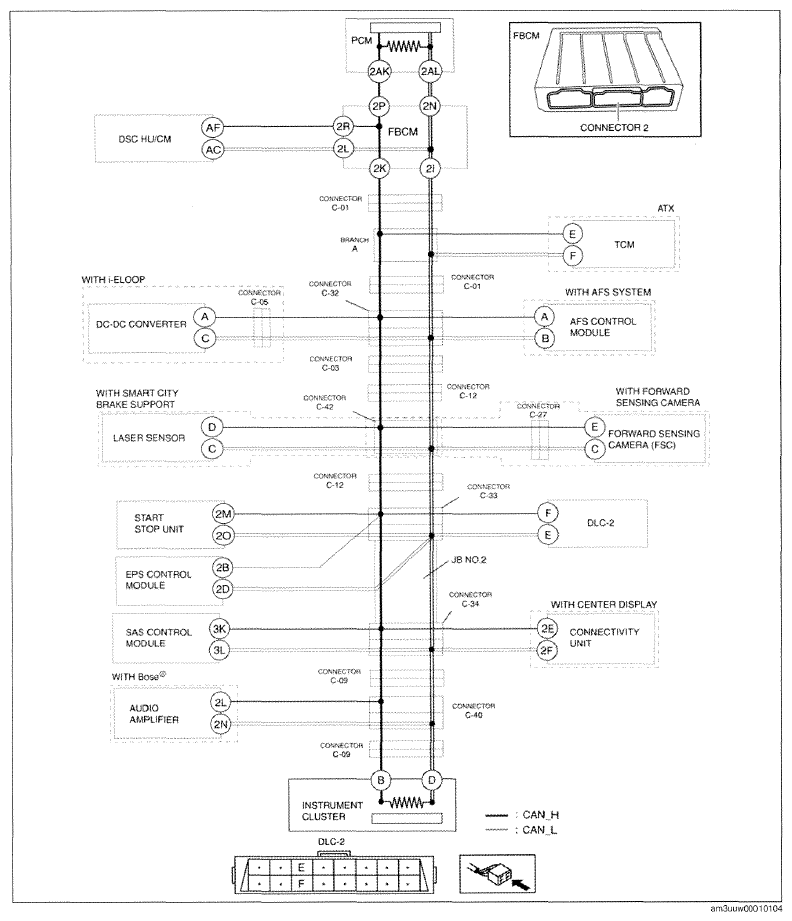

Fig 1: HS-CAN System - Wiring Diagram
G09784522Courtesy of MAZDA MOTORS CORP.
