Driver-Side Door Glass Cannot Be Operated Manually Or Automatically [Power Window System]: Notes

Description	Driver-side door glass cannot be operated manually or automatically using power window main switch

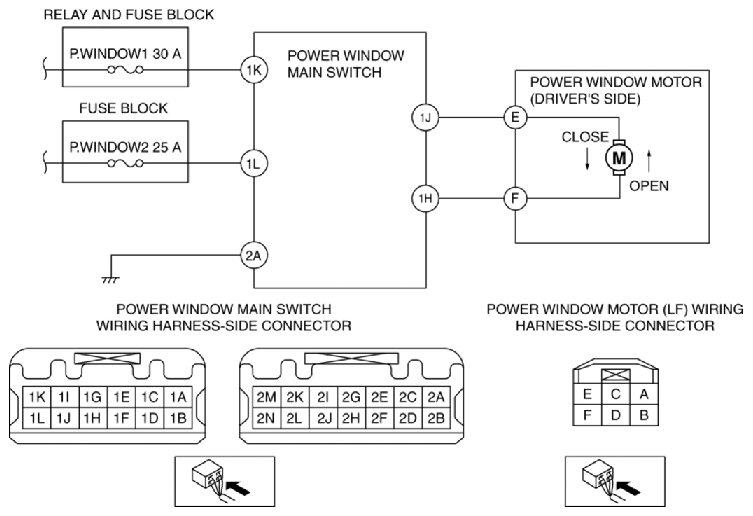

Possible Causes	Power window main switch malfunction Power window motor malfunction Malfunction in power window main switch power supply circuit Short to ground in wiring harness between P.WINDOW1 30A fuse and power window main switch terminal 1K Short to ground in wiring harness between P.WINDOW2 25A fuse and power window main switch terminal 1L P.WINDOW1 30A fuse malfunction P.WINDOW2 25A fuse malfunction Open circuit in wiring harness between P.WINDOW1 30A fuse and power window main switch terminal 1K Open circuit in wiring harness between P.WINDOW2 25A fuse and power window main switch terminal 1L Malfunction in wiring harness between power window main switch terminals and power window motor terminals Open circuit in wiring harness between power window main switch terminal 1J and power window motor terminal E Open circuit in wiring harness between power window main switch terminal 1H and power window motor terminal F Short to ground in wiring harness between power window main switch terminal 1J and power window motor terminal E Short to ground in wiring harness between power window main switch terminal 1H and power window motor terminal F Open circuit in wiring harness between power window main switch terminal 2A and body ground Connector poor contact or terminal damage
