Coolant Reserve Tank Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

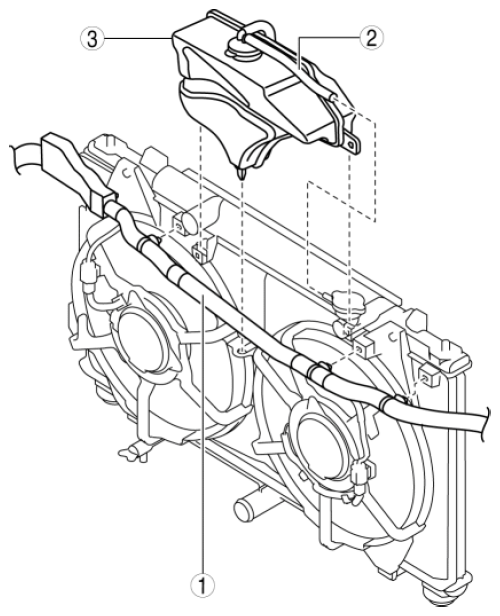

Fig 1: Wiring Harness, Hose And Coolant Reserve Tank
G10985326Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Wiring harness
2 Hose
3 Coolant reserve tank
(See Coolant Reserve Tank Removal Note .)
