Solar Radiation Sensor Inspection

  1. Shine a fluorescent light or expose the solar radiation sensor to natural sunlight.
  2. Connect the positive (+) lead to terminals B, C and negative (-) lead to terminal A of the solar radiation sensor, and verify that the voltage value is output.

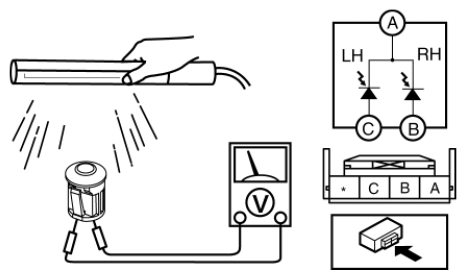

Fig 1: Connecting Positive (+) Lead To Terminals B, C And Negative (-) Lead To Terminal A Of Solar Radiation Sensor
G10986657Courtesy of MAZDA MOTORS CORP.
