Passenger Compartment Temperature Sensor Inspection
- Measure the temperature around the passenger compartment temperature sensor and measure the resistance between passenger compartment temperature sensor terminals A and B.

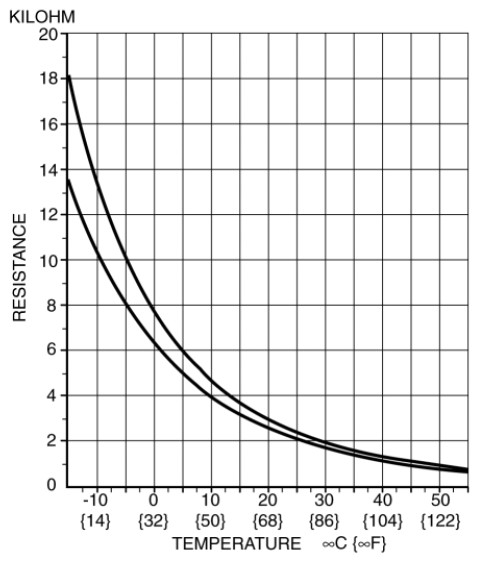

- If the characteristics of the passenger compartment temperature sensor are not as shown in the graph, replace the passenger compartment temperature sensor.
