Ambient Temperature Sensor Inspection

  1. Measure the temperature around the ambient temperature sensor and measure the resistance between the ambient temperature sensor terminal.

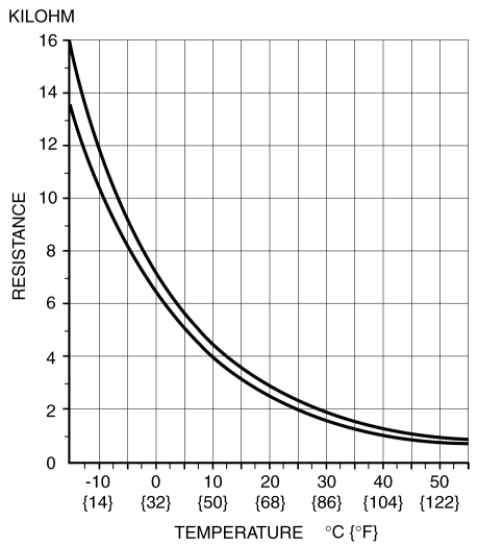

    Fig 1: Ambient Temperature Sensor Resistance Temperature Graph
    G10986659Courtesy of MAZDA MOTORS CORP.
    • If the characteristics of the ambient temperature sensor are not as shown in the graph, replace the ambient temperature sensor.
