Heated Outer Mirror Inspection
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the following parts:
- Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
- Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
- Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
- Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)

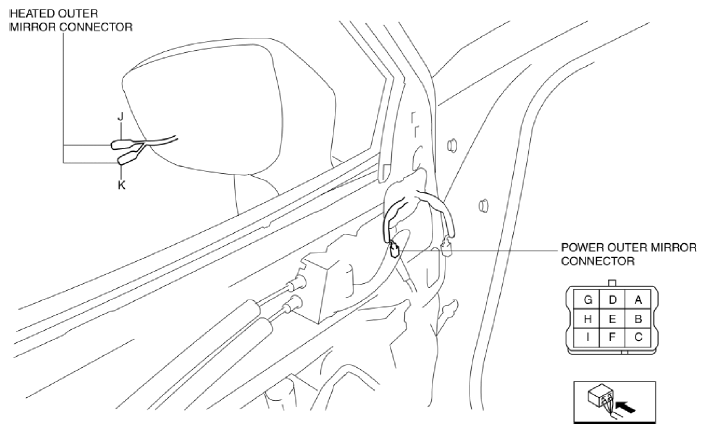

- Verify that the continuity between heated outer mirror connector terminals is as indicated in the table.
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
