Lighting Systems Location Index: Interior

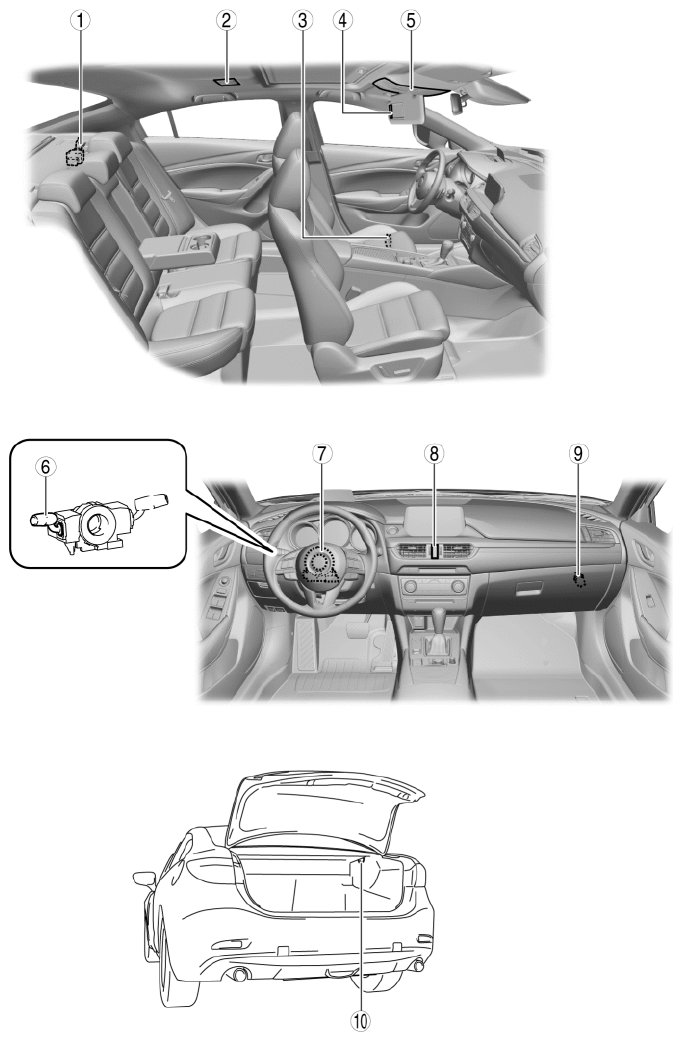

Fig 1: Interior Lighting System Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Brake light unit (With smart brake support) (See BRAKE LIGHT UNIT REMOVAL/INSTALLATION .) (See BRAKE LIGHT UNIT INSPECTION .)
2	Rear map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See MAP LIGHT REMOVAL/INSTALLATION .) (See MAP LIGHT BULB REMOVAL/INSTALLATION .) (See MAP LIGHT INSPECTION .)
3	Courtesy light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See COURTESY LIGHT BULB REMOVAL/INSTALLATION .)
4	Vanity mirror illumination (With vanity mirror illumination) (See VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION .) (See VANITY MIRROR ILLUMINATION INSPECTION .)
5	Front map light (See LIGHTING SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE .) (See MAP LIGHT REMOVAL/INSTALLATION .) (See MAP LIGHT BULB REMOVAL/INSTALLATION .) (See MAP LIGHT INSPECTION .)
6	Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .) (See LIGHT SWITCH INSPECTION .) (See FRONT FOG LIGHT SWITCH INSPECTION .)
7	Steering angle sensor (With steering angle sensor) (See STEERING ANGLE SENSOR REMOVAL/INSTALLATION .) (See STEERING ANGLE SENSOR INSPECTION .)
8	Hazard warning switch (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION .) (See HAZARD WARNING SWITCH INSPECTION .)
9	Glove compartment light (See GLOVE COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .)
10	Trunk compartment light (See TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION .)
