System wiring diagram

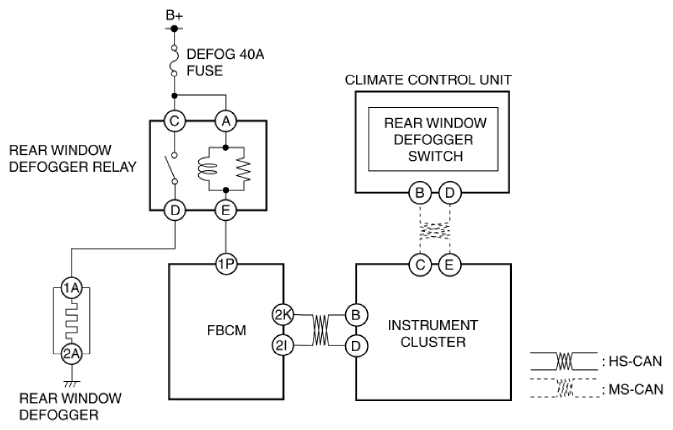

Fig 1: Rear Window Defogger System Wiring Diagram (Manual Air Conditioner)
G10987565Courtesy of MAZDA MOTORS CORP.
