Assist Handle Removal/Installation

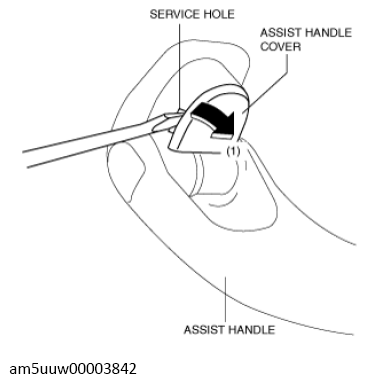

- Insert a flathead screwdriver into the service hole and remove the assist handle covers in the direction of arrow (1).
 Courtesy of MAZDA MOTORS CORP.
|

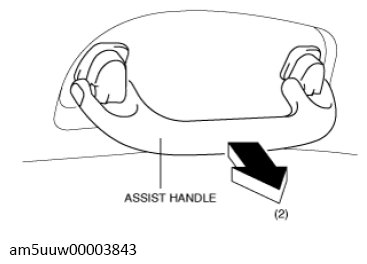

- Pull the assist handle in the direction of arrow (2).
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the assist handle.
- Install in the reverse order of removal.
