Troubleshooting Procedure

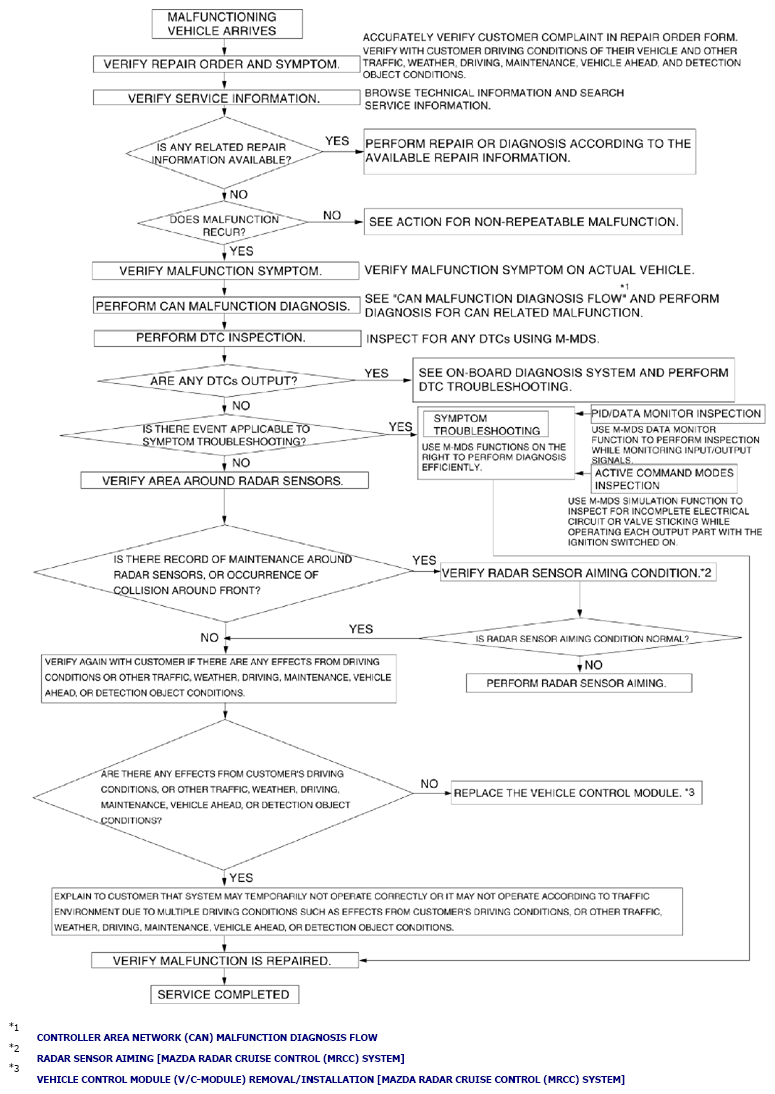

Fig 1: Vehicle Control Module Troubleshooting Procedure Flowchart
G10959575Courtesy of MAZDA MOTORS CORP.
