3 Sport, 4D Hatchback, Automatic Trans
>>
Repair and Diagnosis
>>
Transmission
>>
Transmission Control Systems
>>
On-Board Diagnostics - Transmission Control System
>>
On-Board Diagnostic System Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
On-Board Diagnostic System Wiring Diagram

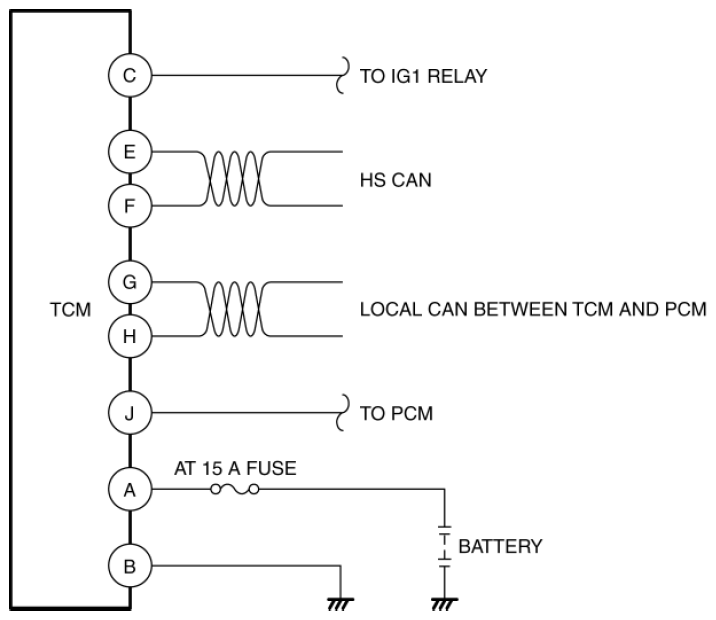

Fig 1: FW 6A-EL On Board Diagnostic System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
