DTC P2530-00: Ignition Switch Stuck Off: Notes

DTC P2530:00	Ignition switch stuck off
DETECTION CONDITION	If the IG ON time count of the instrument cluster proceeds 5 s under the following condition: Ignition switch signal off Diagnostic support note The check engine light does not illuminate. The automatic transaxle warning light does not illuminate. PENDING CODE is available. FREEZE FRAME DATA is not available. DTC is stored in the TCM memory.
FAIL-SAFE FUNCTION	Not applicable

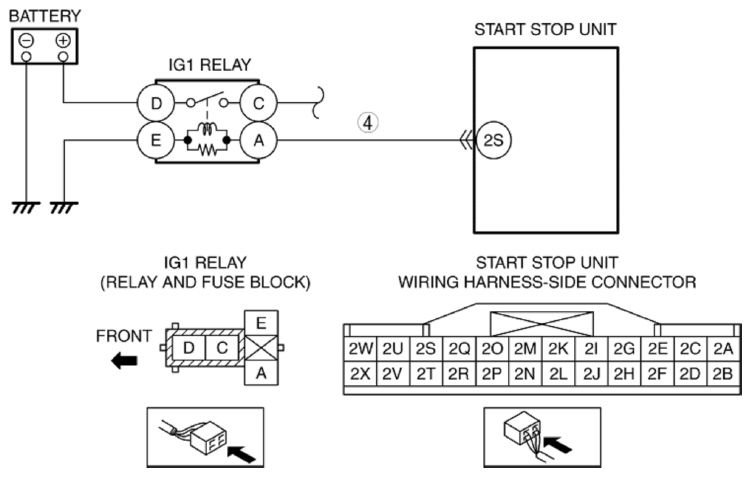

POSSIBLE CAUSE	Start stop unit malfunction Ignition switch signal output stuck off Wiring harness malfunction Short or open signal in ignition switch Ignition switch signal terminal (start stop unit terminal 2S) malfunction Control valve body malfunction Ignition switch signal terminal (start stop unit terminal 2S) pin deformity
