Drive-by-wire control (+) signal

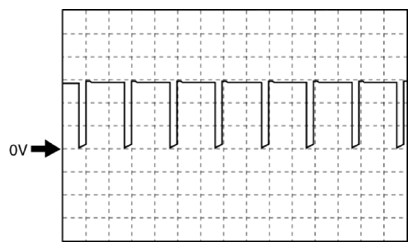

Fig 1: Drive-By-Wire Control (+) Signal Oscilloscope Graph
Courtesy of MAZDA
PCM terminals
1CG(+)-body ground(-)
Oscilloscope setting
5 V/DIV (Y), 1 ms/DIV (X), DC range
Vehicle condition
Idle after warm up
