No. 1 Engine Mount: Notes

  1. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

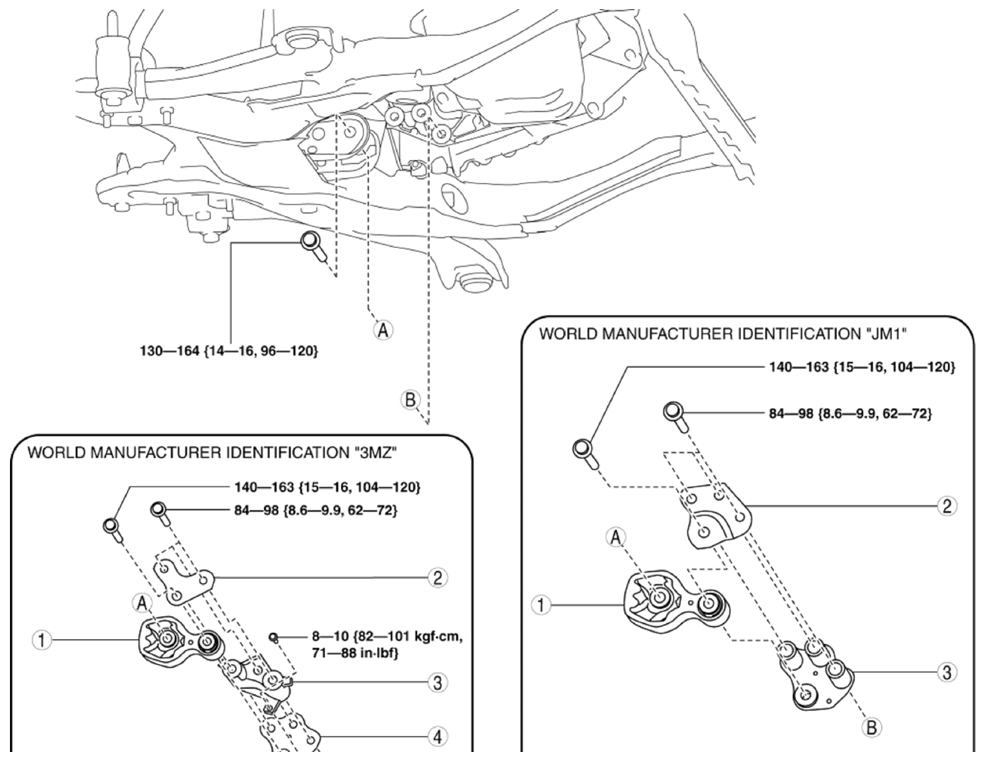

    Fig 1: Identifying Engine Mount Components With Torque Specifications
    G10959790Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 No.1 engine mount rubber
    (See NO. 1 ENGINE MOUNT RUBBER REMOVAL NOTE .)
    (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "JM1" .)
    (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "3MZ") .)
    2 Bracket plate [World manufacturer identification "JM1"]
    (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "JM1" .)
    Bracket plate (No. 1) [World manufacturer identification "3MZ"]
    [See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "3MZ") .)
    3 No. 1 engine mount bracket
    (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "JM1" .)
    (See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "3MZ") .)
    4 Bracket plate (No.2)
    [See NO. 1 ENGINE MOUNT INSTALLATION NOTE (WORLD MANUFACTURER IDENTIFICATION "3MZ") .)
