Driver's Door/Passenger's Door

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
  2. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION ).
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).
    3. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION ).
    4. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION ).
    5. Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION ).
    6. Front outer handle (See FRONT OUTER HANDLE REMOVAL/INSTALLATION ).
  4. Verify that the continuity is as indicated in the table.

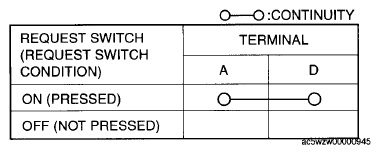

    Fig 1: Request Switch Terminal Reference Chart
    G09077072
    Fig 2: Checking Request Switch Terminal
    G09077073
    • If not as indicated in the table, replace the front outer handle.
