Connector Disconnect Note

WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the area (1) indicated by the arrow and slide it as shown in the figure (2).

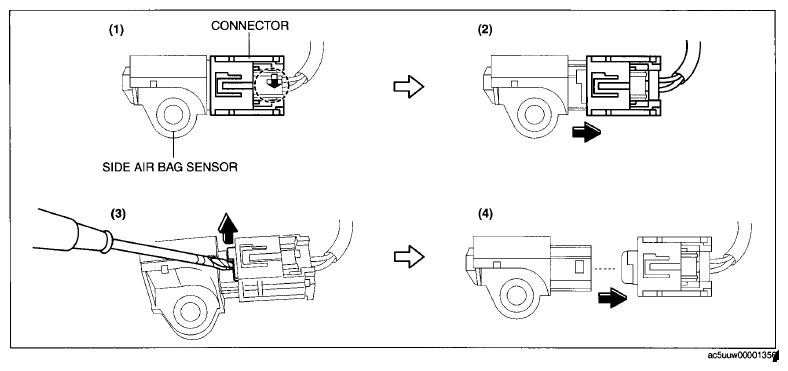

    Fig 1: Removing Side Air Bag Sensor Connector Using Tape- Wrapped Screwdriver
    G09076175
  2. Lift up the location shown in the figure using a tape-wrapped flathead screwdriver (3) and disconnect the connector (4).
