Pressure Sensor Removal/Installation [Two-Step Deployment Control System]
WARNING: This page is about a different car, the 2013 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Handling the pressure sensor improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the pressure sensor. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] ). (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM] ).
- Switch the ignition to off.
- Disconnect the negative battery cable and wait for 1 min or more . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0] ).
- Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION ).
- Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION ).

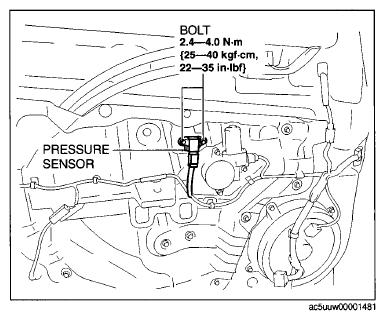

- Remove the bolts.
- Remove the pressure sensor.
- Disconnect the connector from the pressure sensor by pressing the connector tab and pulling out the lock lever in the direction of the arrow.
- When connecting the pressure sensor connector, insert the lock lever (connector disconnection prevention lever) completely.
- Install in the reverse order of removal.
- Switch the ignition ON (engine off or on).
- Verify that the air bag system warning light illuminates for approx. 6 s
and goes out.
- If the air bag system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [TWO-STEP DEPLOYMENT CONTROL SYSTEM] ).
