Radiator Mount Removal Note

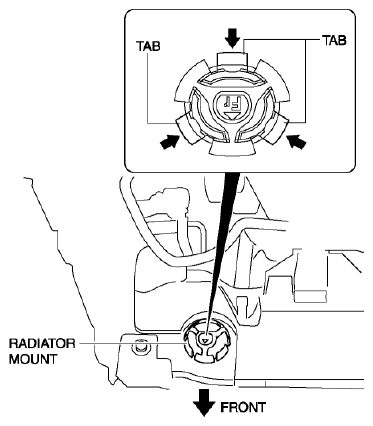

  1. While pressing the radiator mount tab in the direction of the arrow shown below, lift the radiator mount.
    Fig 1: Pressing Radiator Mount Tab
    G08150132Courtesy of MAZDA MOTORS CORP.
  2. Remove the radiator mount.
