Quick Diagnosis Chart

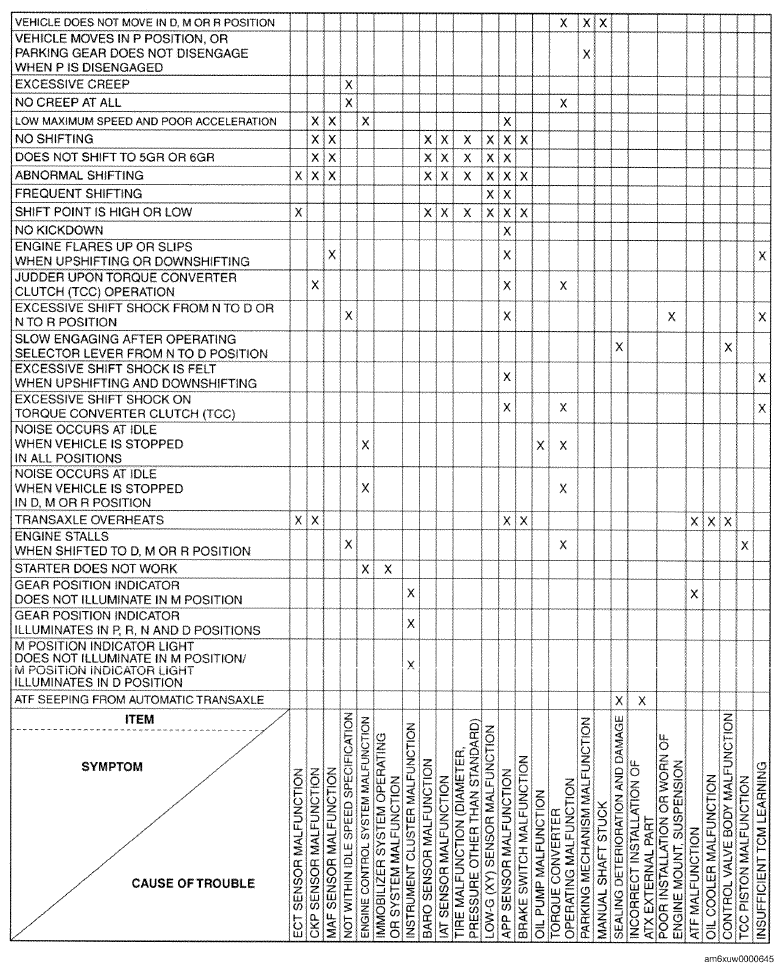

Fig 1: Quick Diagnosis Chart (FW6A-EL)

G09771110

Courtesy of MAZDA MOTORS CORP.
