HVAC Basic System Location Index

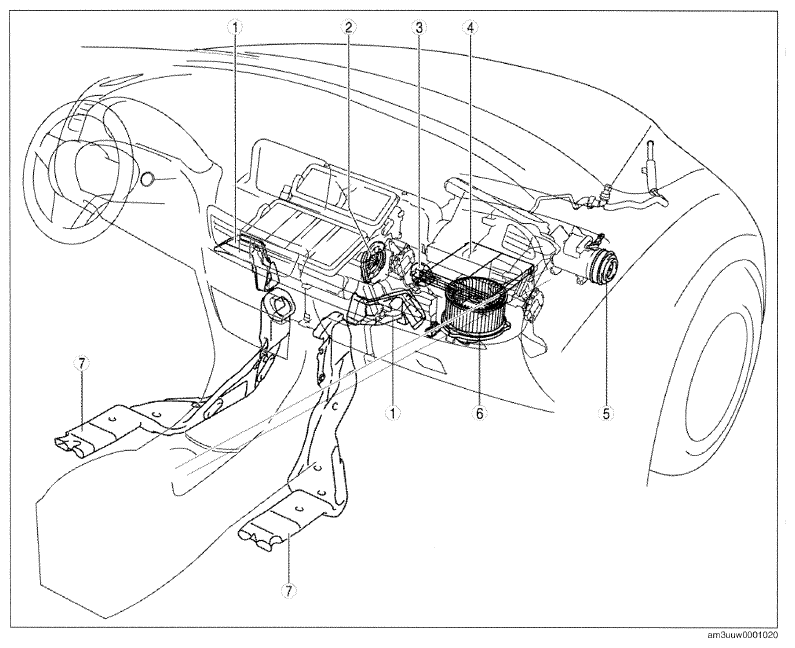

Fig 1: HVAC Basic System Components Location (1 Of 2)
G09771323Courtesy of MAZDA MOTORS CORP.

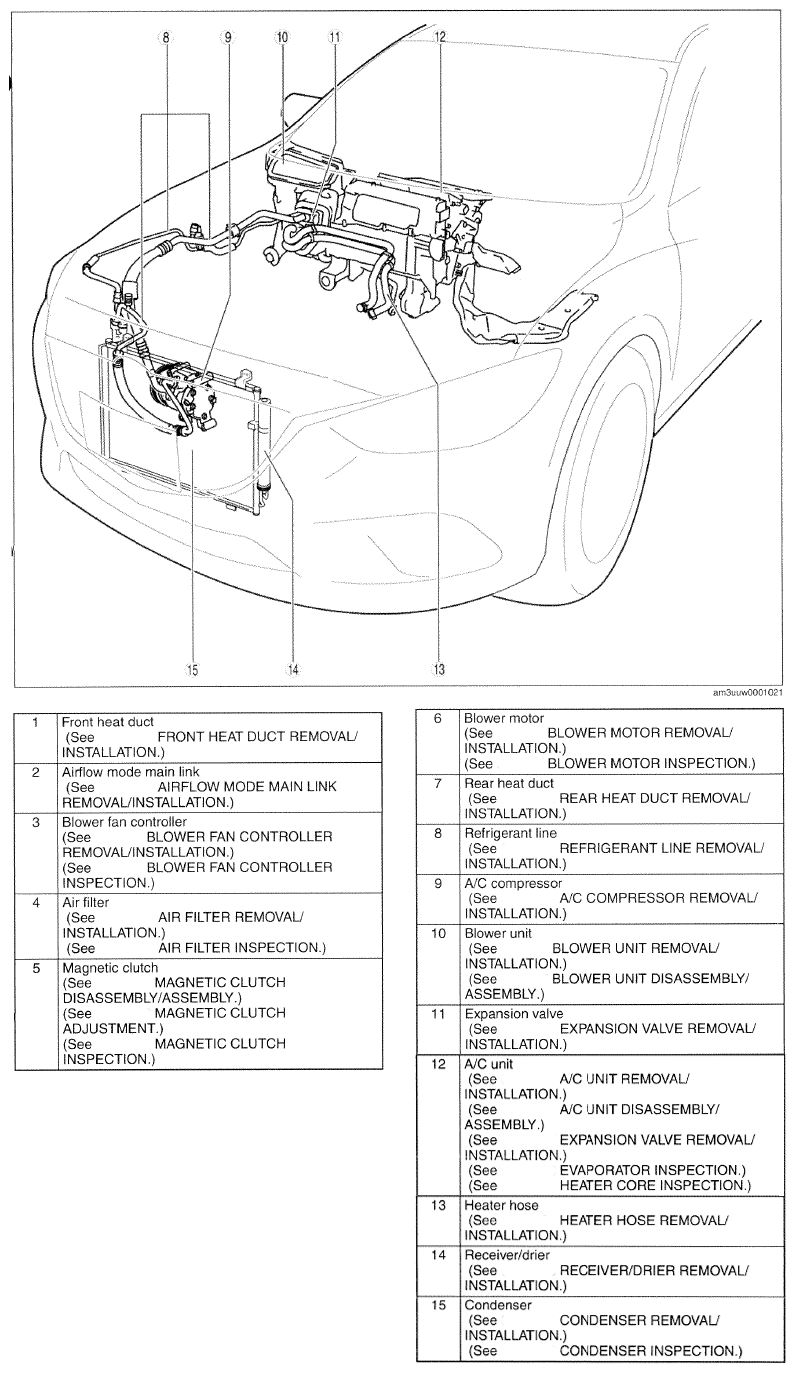

Fig 2: HVAC Basic System Components Location (2 Of 2)
G09771324Courtesy of MAZDA MOTORS CORP.
