Clutch Unit Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the MTX. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .)

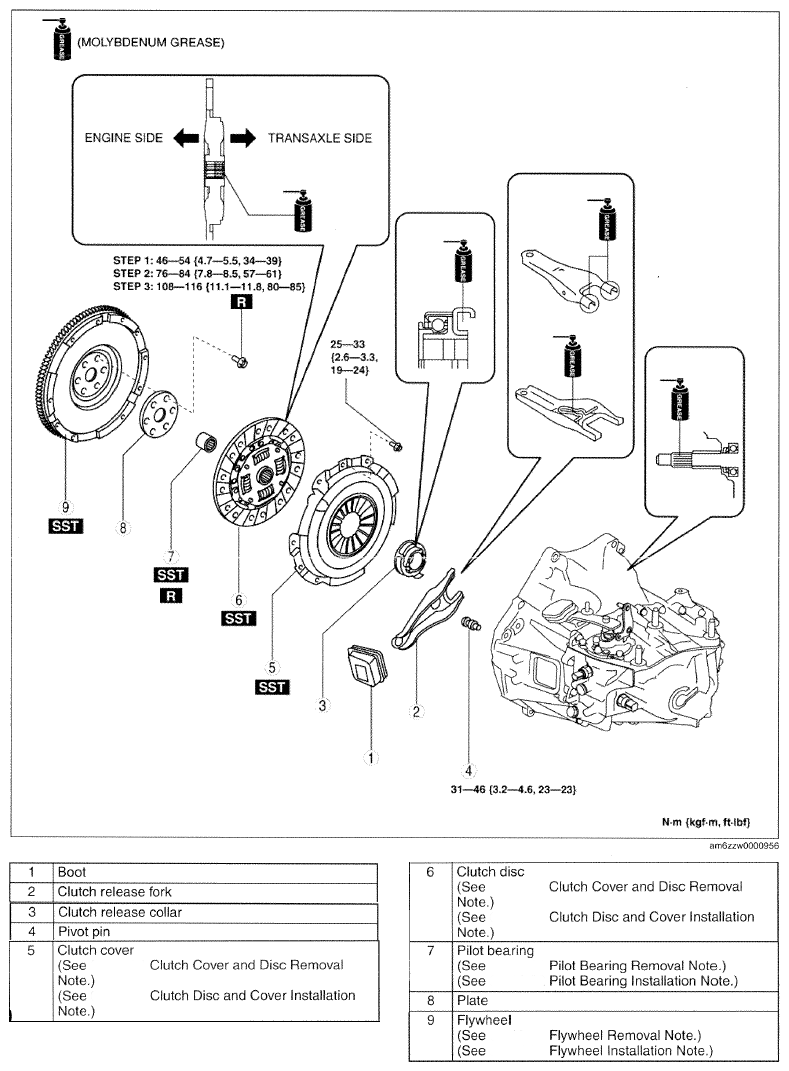

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Add the specified amount of specified transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT .)
