Heated Outer Mirror Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
2. Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
Verify that the continuity between heated outer mirror connector terminals is as indicated in the table.

Fig 1: Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

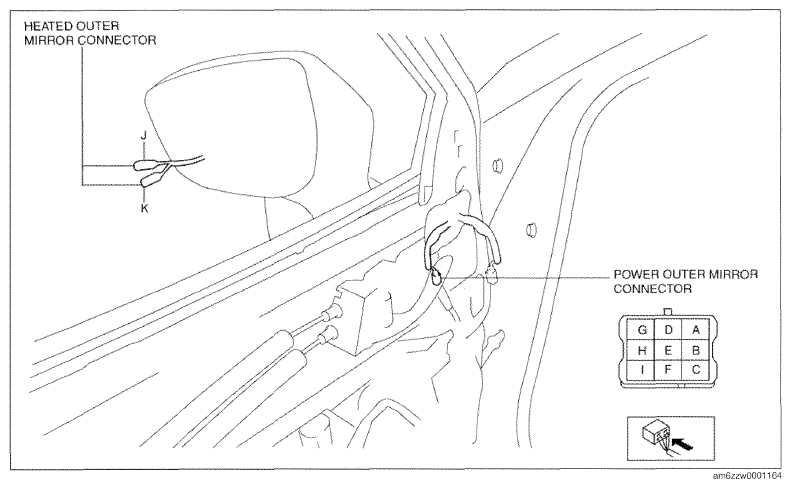

Fig 2: Identifying Heated Outer Mirror
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
