Exhaust System Removal/Installation: Notes
WARNING:
- A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before servicing the exhaust system.
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [LF] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)

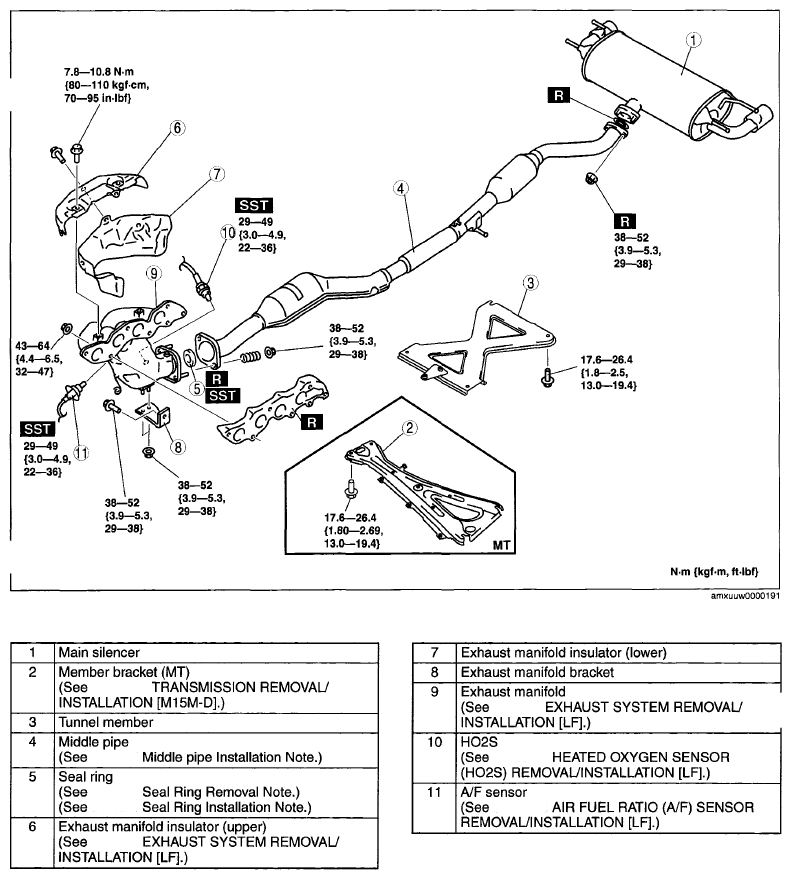

- Remove in the order indicated in Fig 1.
- Remove the exhaust system insulator. (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION NOTE .)
- Install in the reverse order of removal.
