Exhaust System Insulator Removal/installation Note: Notes

  1. Remove the exhaust system insulator in the order shown in illustration.
  2. Install in the reverse order of removal.

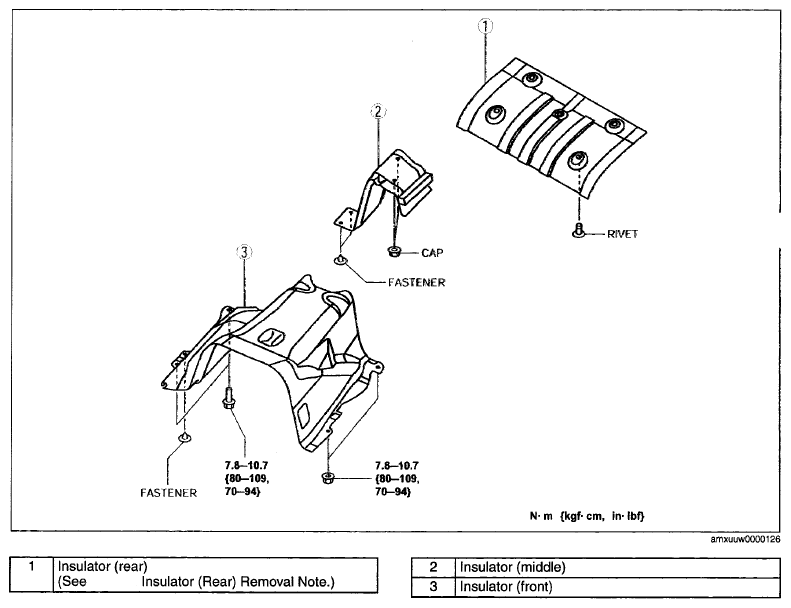

    Fig 1: Exhaust System Insulator With Torque Specifications
    G06150920Courtesy of MAZDA MOTORS CORP.
