Power Window System Wiring Diagram [Power Window System]
>>
Soft-top Model
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Soft-top Model

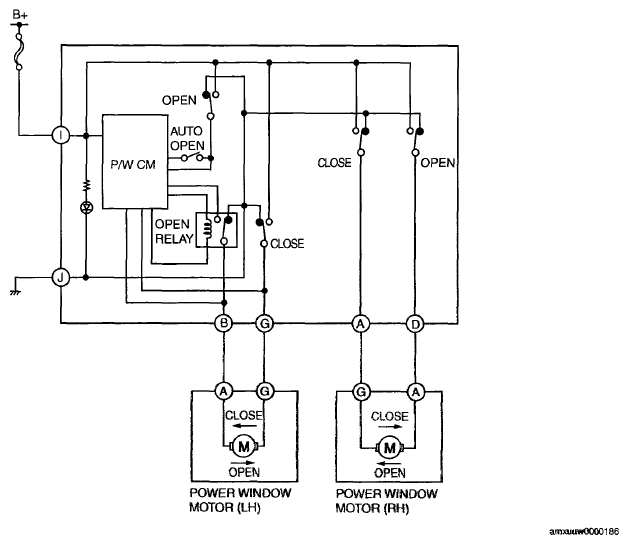

Fig 1: Power Window System Wiring Diagram - Soft-Top Model
Courtesy of MAZDA MOTORS CORP.
