Audio Control Switch Removal/Installation
NOTE:
- For vehicles with the cruise control system, the audio control switch harness and the cruise control switch harness are united, therefore they cannot be separated.
- Remove the battery cover.
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] )
- Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION )
- Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION )

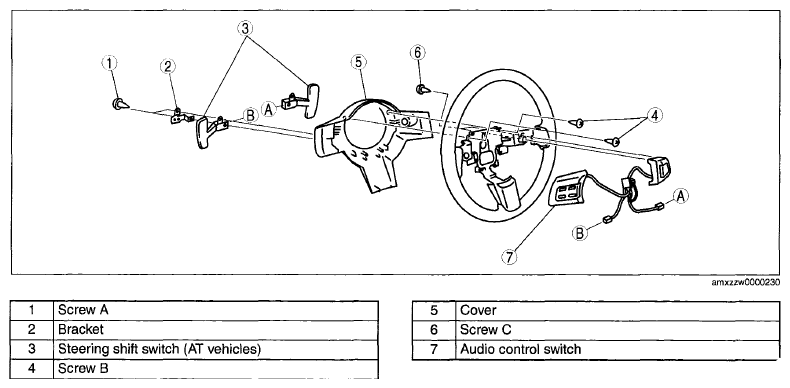

- Remove in the order indicated in the illustration.
- Install in the reverse order of removal.
