Keyless Control Module

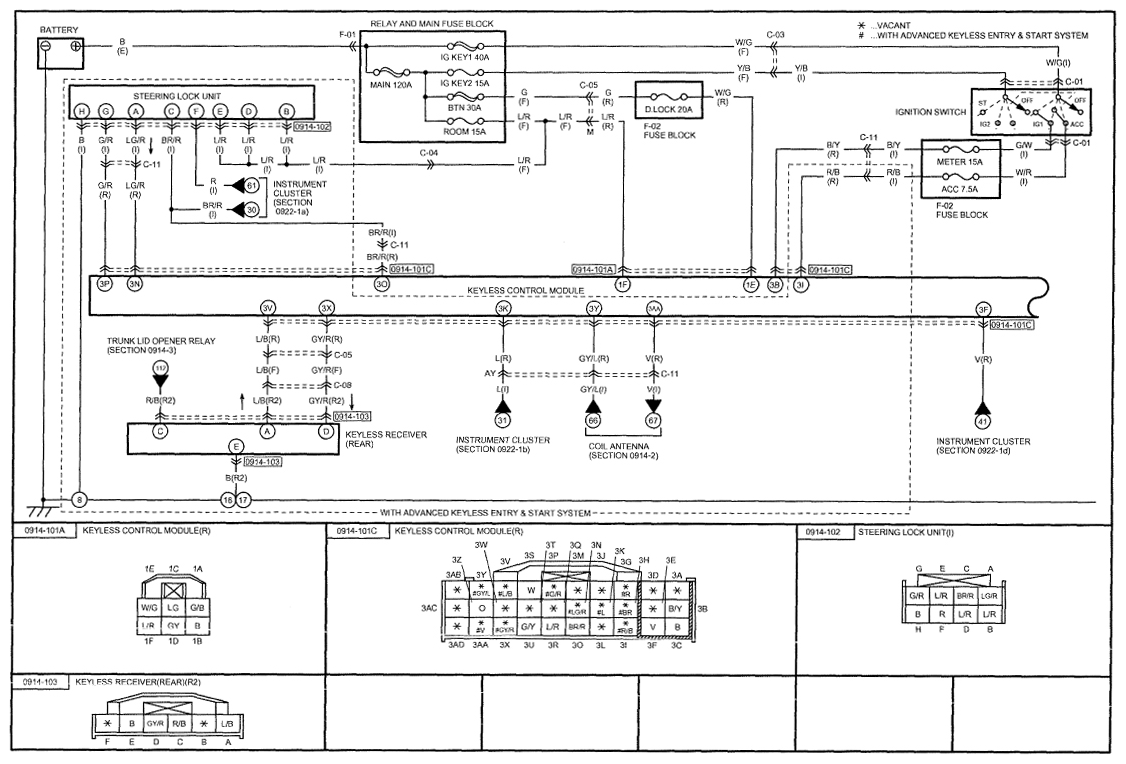

Fig 1: Keyless Control Module Wiring Diagram - 0914-1a (1 Of 2)

Fig 2: Keyless Control Module Wiring Diagram - 0914-1a (2 Of 2)

Fig 3: Keyless Control Module Wiring Diagram - 0914-1b (1 Of 2)

Fig 4: Keyless Control Module Wiring Diagram - 0914-1b (2 Of 2)

Fig 5: Keyless Control Module Wiring Diagram - 0914-1c (1 Of 2)

Fig 6: Keyless Control Module Wiring Diagram - 0914-1c (2 Of 2)

Fig 7: Keyless Control Module Wiring Diagram - 0914-1d (1 Of 2)

Fig 8: Keyless Control Module Wiring Diagram - 0914-1d (2 Of 2)

Fig 9: Keyless Control Module Wiring Diagram - 0914-1e (1 Of 2)

Fig 10: Keyless Control Module Wiring Diagram - 0914-1e (2 Of 2)
